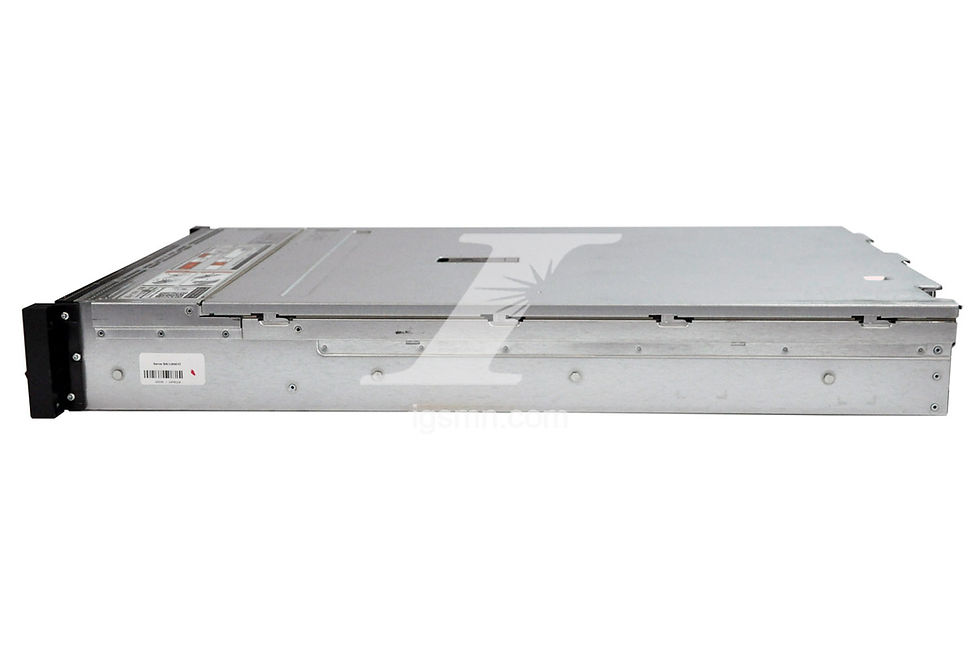

Dell PowerEdge R730 with 16 SFF 2.5" HDD bays base server

For Equipment sold by IGS to any end-user, IGS warrants the Equipment will be free from defects in material and workmanship for a period of one year from and after the date of purchase when utilized for its normal and intended use in accordance with manufacturer guidelines. For more information on returns and our return process please check our policies & returns page.

Dell PowerEdge R730 Server Specifications

Form Factor:

2U rack

Processor:

Intel® Xeon® processor E5-2600 v4 product family

Processor Sockets:

2

Cache:

2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 22

Chipset:

Intel C610 series chipset

Memory:

Up to 3TB (24 DIMM slots): 4GB/8GB/16GB/32GB/64GB/128GB DDR4 up to 2400MT/s

I/O Slots:

Up to 7 x PCIe 3.0 plus dedicated PERC slot

RAID Controllers:

Internal controllers: PERC S130 (SW RAID), PERC H330, PERC H730, PERC H730P

External HBAs (RAID): PERC H830

External HBAs (non-RAID): 12Gbps SAS HBA

Drive Bays:

Internal hard drive bay and hot-plug backplane:

Up to 16 x 2.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Up to 8 x 3.5" HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

Maximum Internal Storage:

HDD: SAS, SATA, nearline SAS SSD: SAS, SATA

16 x 2.5" – up to 29TB via 1.8TB hot-plug SAS hard drives

8 x 3.5" – up to 64TB via 8TB hot-plug NL SAS hard drives

Embedded NIC Options:

4 x 1GbE, 2 x 10+2GbE, 4 x 10GbE NDC

Power Supplies:

Titanium efficiency 750W AC power supply; 1100W DC power supply; Platinum efficiency 495W, 750W, 1100W AC power supply

Availability:

ECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, tool-less chassis, support for high availability clustering and virtualization, proactive systems management alerts, iDRAC8 with Lifecycle Controller

Remote Management:

iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)

Systems Management:

IPMI 2.0 compliant

Dell OpenManage Essentials

Dell OpenManage Mobile

Dell OpenManage Power Center

Dell OpenManage Integrations:

- Dell OpenManage Integration Suite for Microsoft® System Center

- Dell OpenManage Integration for VMware® vCenter™

Dell OpenManage Connections:

- HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management

- Dell OpenManage Plug-in for Oracle® Database Manager

Rack Support:

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Operating Systems:

Microsoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®)

Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V)

Microsoft Windows HPC Server 2008

Novell® SUSE® Linux Enterprise Server

Red Hat® Enterprise Linux

Optional Embedded Hypervisors:

Citrix® XenServer® VMware vSphere® ESXi™ Microsoft Windows Server 2012, includes Hyper-V
