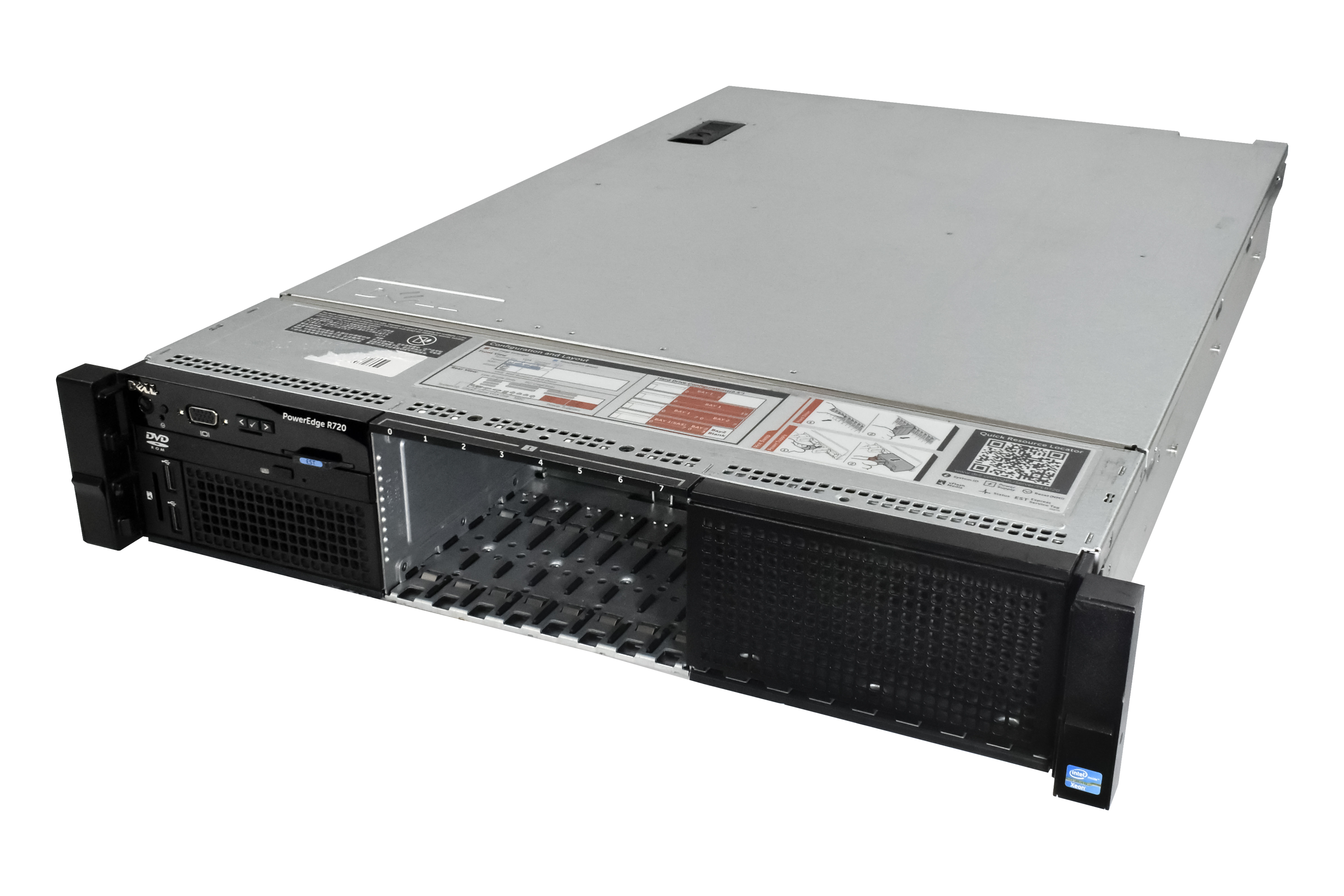

Dell PowerEdge R720 with 8x SFF HDD Bays Rack Server

For Equipment sold by IGS to any end-user, IGS warrants the Equipment will be free from defects in material and workmanship for a period of one year from and after the date of purchase when utilized for its normal and intended use in accordance with manufacturer guidelines. For more information on returns and our return process please check our policies & returns page.

Specifications for Dell R720 PowerEdge Rackmount Server

Feature:

Dell PowerEdge R720

Form Factor:

2U Rack

Processors:

Intel® Xeon® processor E5-2600 product family

Processor Sockets:

2

Internal Interconnect:

2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s

Cache:

2.5MB per core; core options: 2, 4, 6, 8

Chipset:

Intel C600

Memory:

Up to 768GB (24 DIMM Slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

I/O Slots:

7 PCIe slots:

One x16 full-length, full-height

Three x8 full-length, full-height

Three x8 half-length, half-height

RAID Controller:

Internal controllers:

PERC S110 (SW RAID)

PERC H310

PERC H710

PERC H710P

External HBAs (RAID):

PERC H810

External HBAs (non-RAID):

6Gbps SAS HBA

Drive Bays:

Up to eight 3.5” drives or up to sixteen 2.5” drives

Maximum Internal Storage:

32TB

Hard Drives:

Hot-plug hard drive options:

2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)

3.5” SAS (15K), nearline SAS (7.2K), SATA (7.2K)

Self-encrypting drives available

Embedded NIC:

Broadcom® 5720 Quad Port 1GbE BASE-T (no TOE or iSCSI offload)

Intel I350 Quad Port 1GbE BASE-T (no TOE or iSCSI offload)

Intel X540 Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)

Broadcom 57800S Dual Port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports

Broadcom 57800S Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports

Power Supply:

Auto-ranging Titanium efficiency, hot-plug redundant 750W AC power supply; Auto-ranging Platinum efficiency, hot-plug redundant 495W, 750W or 1100W AC power supply; 1100W DC power supply

Availability:

High-efficiency, hot-plug, redundant power supplies; hot-plug drive bays; TPM; dual internal SD support; hot-plug, redundant fan; optional bezel; information tag; ECC memory, interactive LCD screen; extended thermal support; ENERGY STAR® compliant; switch independent partitioning

Remote Management:

iDRAC7 with Lifecycle Controller

iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option)

8GB vFlash media (upgrade option), 16GB vFlash media (upgrade optional)

System Management:

IPMI 2.0 compliant

Dell OpenManage™ Essentials and Dell Management Console

Dell OpenManage Power Center

Dell OpenManage Connections:

Dell OpenManage Integration Suite for Microsoft® System Center

Dell plug-in for VMware® vCenter™

HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support:

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

Operating Systems:

Microsoft® Windows Server® 2012

Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V® v2)

Microsoft Windows® Small Business Server 2011

Novell® SUSE® Linux Enterprise Server

Red Hat® Enterprise Linux®

Virtualization options:

Citrix® XenServer®

VMware vSphere® including ESX™ and ESXi™

Red Hat Enterprise Virtualization®
