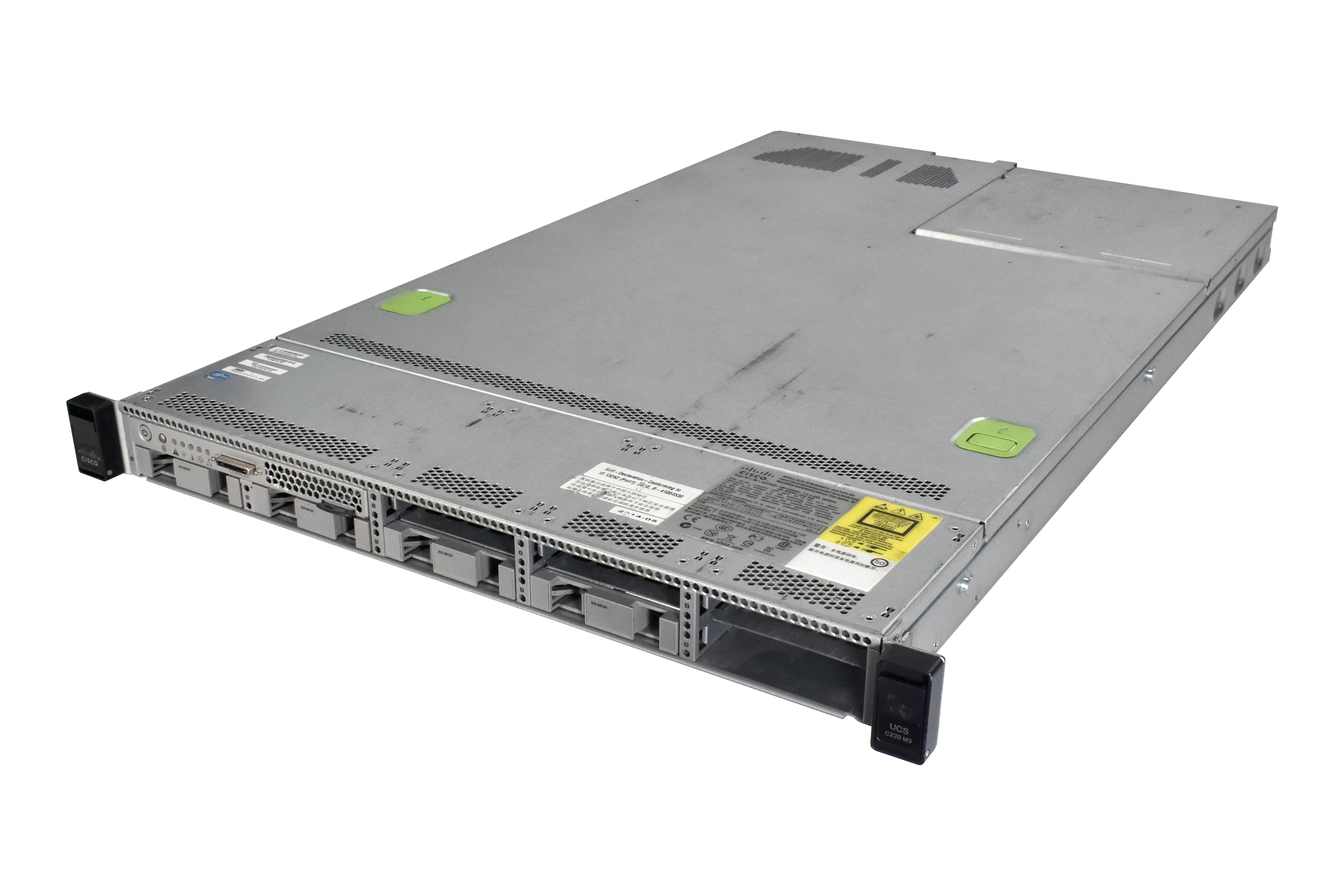

Cisco UCS-C220-M3 UCS C220 M3 High-Density SFF Rack Base Server

For Equipment sold by IGS to any end-user, IGS warrants the Equipment will be free from defects in material and workmanship for a period of one year from and after the date of purchase when utilized for its normal and intended use in accordance with manufacturer guidelines. For more information on returns and our return process please check our policies & returns page.

Cisco UCS C220 M3 Server Specification

Chassis:

One rack unit (1RU) chassis

Processor:

One or two Intel® Xeon E5-2600 v2 or E5-2600 series processor family CPUs

Chipset:

Intel® C600 series chipset

Memory:

16 slots for registered or unbuffered ECC DIMMs (RDIMMs or UDIMMs) or load-reduced DIMMs (LRDIMMs)

Multi-bit Error Protection:

This server supports multi-bit error protection.

NIC:

Embedded dual-port Intel i350 PCIe-based Gigabit Ethernet controller, supporting the following:

• Pre-Execution Boot (PXE boot)
• iSCSI boot
• Checksum and segmentation offload
• NIC teaming

Expansion slots:

Two PCIe slots (on a riser card)

• One full-height profile, half-length slot with x24 connector and x16 lane
• One half-height profile, half-length slot with x16 connector and x8 lane

Internal storage devices:

Drives are installed into front-panel drive bays that provide hot-pluggable access.

• Small Form Factor (SFF) drives. Up to eight 2.5-inch SAS or SATA hot-swappable hard disk drives (HDDs) or solid state drives (SSDs)
• The server also contains one internal USB 2.0 port on the motherboard that you can use with a USB thumb drive for additional storage
• UCS Storage Accelerator are also available. These PCIe flash storage devices provide independent high-speed storage.

Cisco Flexible Flash drives:

The server supports up to two internal 32 GB Cisco Flexible Flash drives (SD cards).

The second SD card is blank and can be used to mirror the first SD card. It can be used to protect the Hypervisor Partition with RAID1.

Video:

The Cisco Integrated Management Controller (CIMC) provides video using the Matrox G200e video/graphics controller:

• Integrated 2D graphics core with hardware acceleration
• DDR2/3 memory interface supports up to 512 MB of addressable memory (8 MB is allocated by default to video memory)
• Supports display resolutions up to 1920 x 1200 16bpp @ 60Hz
• High-speed integrated 24-bit RAMDAC
• Single lane PCI-Express host interface running at Gen 1 speed

Storage controller:

Embedded RAID (3 Gbs)

• Embedded SATA-only RAID controller, supporting up to 4 SATA-only drives (RAID 0, 1, 10), or
• ROM5 embedded RAID upgrade, supporting up to 8 SAS+SATA drives (RAID 0, 1, 10), or
• ROM55 embedded RAID upgrade, supporting up to 8 SAS+SATA drives (RAID 0, 1, 5, 10).

2008M-8i Mezzanine Cards (6 Gbs) - two versions

• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to 8 SAS+SATA drives supporting RAID 0, 1, 5, 10, 50, and JBOD. SAS and SATA drives can be mixed. This card has a product ID (PID) of UCSC-RAID-11-C220.
• Cisco UCSC RAID SAS 2008M-8i Mezzanine Card, supporting up to eight SAS/SATA drives supporting RAID 0, 1, 10, and JBOD. This card has a product ID (PID) of UCSC-RAID-MZ-220

PCIe RAID controllers (6 Gbs)

• LSI MegaRAID SAS 9271-8i or 9271CV-8i RAID 8-port PCIe RAID controllers with on-board 1 GB data cache and chassis-mounted (remote) supercap for data cache power backup (supercap not present on 9271-8i), supporting RAID levels 0, 1, 5, 6, 10, 50, 60 and up to eight internal SAS+SATA drives.
• LSI MegaRAID 9285CV-8e or 9286CV-8e PCIe RAID controllers with on-board 1 GB cache and chassis-mounted (remote) supercap for data cache power backup, supporting RAID levels 0, 1, 5, 6, 10, 50, 60. Supports 8 external SAS ports (up to 240 external drives).

Interfaces:

Rear panel

• One RJ45 serial port connector
• Two USB 2.0 port connectors
• One DB15 VGA connector
• Two RJ-45 10/100/1000 Ethernet port connectors
• One RJ-45 10/100/1000 Ethernet management port, using Cisco Integrated Management Controller (CIMC) firmware

Various PCIe card ports (dependent on which cards are installed)

• Converged Network Adapter (CNA) ports
• Network Interface Card (NIC) ports
• Host Bus Adapter (HBA) ports

Front panel

• One KVM console connector (supplies two USB, one VGA, and one serial connector)

WoL:

The 1-Gb Base-T Ethernet LAN ports support the wake-on-LAN (WoL) standard.

InfiniBand:

The bus slots in this server support the InfiniBand architecture.

Front Panel:

A front panel controller provides status indications and control buttons

Power subsystem:

Up to two 450 W (AC) , 650 W, (AC), or 930 W (DC) power supplies. One is mandatory; one more can be added for 1 + 1 redundancy.

ACPI:

This server supports the advanced configuration and power interface (ACPI) 4.0 standard.

Fans:

Chassis:

• Five hot-swappable fans for front-to-rear cooling

Power supply:

• Each power supply is equipped with a fan.

Integrated management processor:

BMC running Cisco Integrated Management Controller (CIMC) firmware. Depending on your CIMC settings, the CIMC can be accessed through the 1-GbE dedicated management port, the 1-GbE LOM ports, or a Cisco virtual interface card (VIC).

Some server products say CTO in the name, and this acronym means Configure-to-Order; these servers have no CPU, memory, power, HDD, or rails. If you need a custom-configured server, chat with us now. We are happy to help. You can also book an online appointment with one of our product specialists to discuss your needs.
